EXCLUSIVE, ADVANCED DESIGN

The versatile, compact HOGerizer is the only system of its kind currently available to the wood products industry. It consists of two inter-dependent grinding machines stacked to work in tandem… in a space-saving, money-saving unit. Because the HOGerizer performs the functions of both a hog and a pulverizer, it eliminates the need for expensive, custom-designed, multi-machine systems to achieve the same results.

FAST, EFFICIENT OPERATION

The upper machine accepts trim blocks, edgings, and other wood waste. It hogs this bulky scrap and discharges it by gravity to the lower machine which reduces it to coarse or fine particles of uniform consistency. A built-in fan unit then air-veys the finished grind a distance of 150 feet or more for storage, transportation, or re-use processing.

The unique Schutte design permits exceptionally high throughput with minimum power consumption. You enjoy greater production at lower cost per ton, for maximum profits from your wood residue.

RUGGED CONSTRUCTION

All HOGerizer components are built to deliver long, trouble-free service under the most severe operating conditions. Quality features include welded boiler plate construction; heat-treated alloy steel shafts supported by high speed, self-aligning bearings in dustproof housings; alloy steel reversible anvils; oversize flywheels; exclusive ribbed grinding plates. The powerful action of the hammers against the grinding plates cuts through and disintegrates wood fibers more quickly, assuring faster and more effective screen grinding.

EASY MAINTENANCE

Hinged drop-down covers provide complete access to all parts which ultimately require service or replacement, such as rotors, hammers, bed knife and liner plates. Fine and coarse screens slide in and out easily, and may be changed in seconds with the machine running. A patented eccentric lock, operated by a simple bar handle, assures accurate positioning and positive locking of screens.

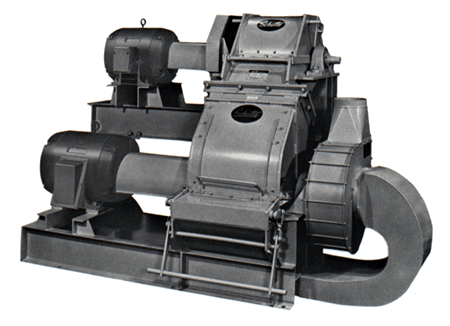

SPECIFICATIONS - SCHUTTE HOGERIZER Model FG-Z

Upper Unit:
• Schutte Series HZF Wood Waste Grinder with Coarse Grate.
• Horsepower: 75-200 at 3600 RPM

Lower Unit:
• Schutte Series 13 Wood Waste Grinder with Fine Screen.
• Horsepower: 150-300 at 3600 RPM

  AVAILABLE IN SEVEN SIZES.

PRODUCES THE FINEST GRIND

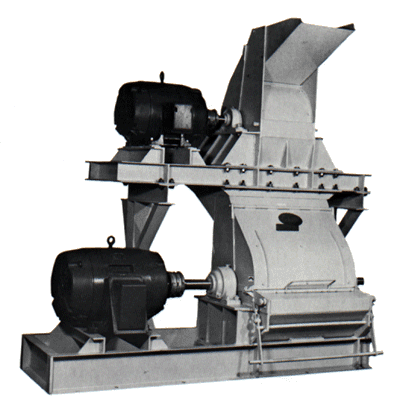

The Model FG HOGerizer was specifically developed by Schutte to handle smaller-size wood scrap and reduce it to uniform, splinter-free coarse or fine particles as desired. It is ideal for pulverizing residues from sawmill or woodworking operations, including wood shavings, chips, bark, and hogged scraps. Through the unique double-grinding operation, using coarse and fine screens, the Model FG can deliver a finished grind of exceptional fineness…..with the consistency of powder.

COMPACT, TANDEM-STACKED SYSTEM

The same proven two-unit , vertically-stacked design is utilized in the Model FG. Wood waste material is fed into the hopper of the upper machine for initial break-up, then discharged by gravity to the lower unit for final pulverization. An integral high-capacity fan unit air-veys the finished grind a distance of 150 feet or more.

SPECIFICATIONS - SCHUTTE HOGERIZER Model FG (Fine Grind)

Upper Unit:
• Schutte Series 13 Wood Waste Grinder with Coarse Screen.
• Horsepower: 50-200 at 3600 RPM


Lower Unit:
• Schutte Series 13 Wood Waste Grinder with Fine Screen.
• Horsepower: 150-300 at 3600 RPM

  AVAILABLE IN SEVEN SIZES.
